Gruen 116 Movement Specifications, Beat Rate & Dimensions

Technical Caliber Datasheet

Manufacturer	Gruen
Caliber Reference	Gruen 116
Movement Type	Manual
Diameter (Lignes)	—
Diameter (mm)	21.99 mm
Height / Thickness	3.5 mm
Jewel Count	15 Jewels
Beat Rate / Frequency	18,000 BPH
Lift Angle	51°
Power Reserve	38 hours
Escapement	Swiss Lever
Production Period	1925

Historical Reference & Restoration Notes

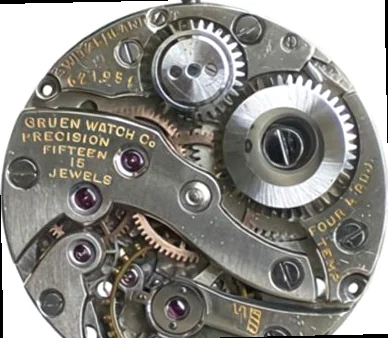

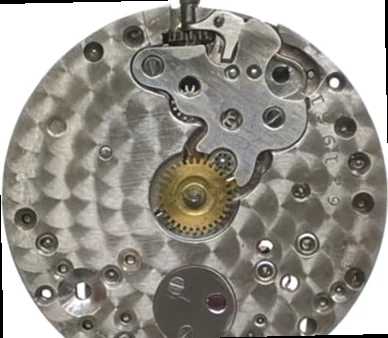

The Gruen 116 is a celebrated example of vintage precision engineering. Featuring 15 jewels and operating at 18,000 BPH, surviving examples are prized by collectors and restorers.
