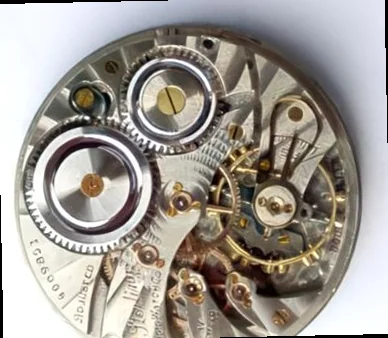

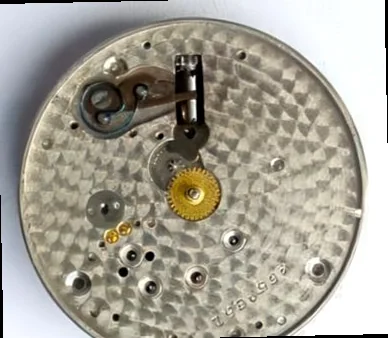

Illinois 404 Movement Specifications, Beat Rate & Dimensions

thumb 1 thumb 2

Technical Caliber Datasheet

ManufacturerIllinois
Caliber ReferenceIllinois 404
Movement TypeManual
Diameter (Lignes)—
Diameter (mm)39.75 mm
Height / Thickness5.1 mm
Jewel Count17 Jewels
Beat Rate / Frequency18,000 BPH
Lift Angle51°
Power Reserve38 hours
EscapementSwiss Lever
Production Period1904

Historical Reference & Restoration Notes

The Illinois 404 is a celebrated example of vintage precision engineering. Featuring 17 jewels and operating at 18,000 BPH, surviving examples are prized by collectors and restorers.
